Battery Specification:
- Normal Voltage: 12V
- Rated Voltage:12.8V
- Normal Capacity: 100Ah
- Charge Voltege: 14.4-14.6V
- Cut-off Voltage: 10V
- Maximum Continuous Discharge Current: 100A
- Peak discharge current: 200A (Duration: less than 5 seconds)
- Max continuous charge current: 50A
- Standard charge current: 20A
- Over Charging Protection Voltage: 14.6V
- Cycle Life: > 2000 cycles at 100% Depth of Discharge (DoD),up to 5000 cycles at 80% DoD
- Discharge Temperature: -20℃~60℃
- Charge Temperature: 0~45℃
- Dimensions: 329*172*214mm/13*6.8*8.4in
- Weight: 10.8kg/24lbs
Features of lithium iron phosphate battery:
- Long service life
The cycle life reaches more than 2000 times, and the standard charge (5 hour rate) use can reach 2000 times. The performance-price ratio will be more than 4 times that of lead-acid batteries.
- Safe to use
Lithium iron phosphate has undergone strict safety tests and will not explode even in the worst traffic accidents.
- High temperature resistance
The peak value of lithium iron phosphate electric heating can reach 350℃-500℃, while lithium manganese oxide and lithium cobalt oxide are only around 200 ℃.
- No memory effect.
- Large capacity.
- Small size and light weight.
- Green and environmental protection.
Green environmental protection, regardless of production, use and scrap, does not contain or produce any toxic and harmful heavy metal elements and substances.
- Low natural discharge rate
The self-discharge rate is very low, which is one of the most outstanding advantages of the battery. Generally, it can be less than 1%/month, less than 1/20 of the Ni-MH battery.
Safety&protection advantage:

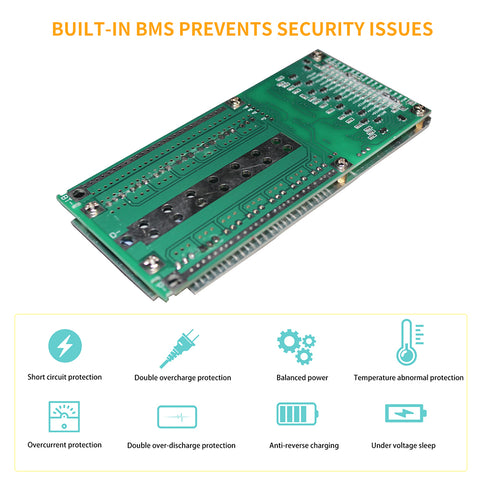

* Built in Automatic Battery Protection System Internal
The intelligent,electric Battery Management System(BMS) protects batteries from extrem temperatures,overcharging,and excessive discharge,provide short circuit protection,balance voltage each cell.
Package List:

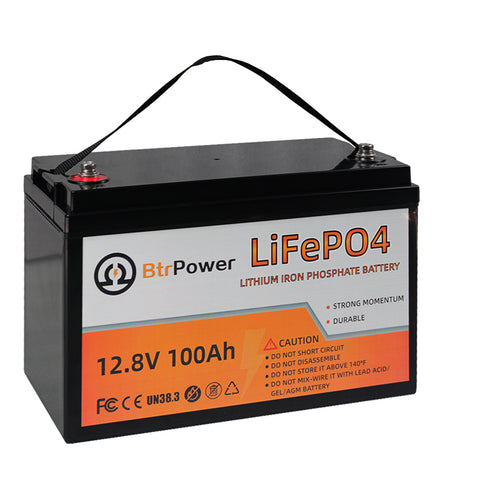

- 1x 12v 100A LiFePO4 Battery Pack (Charge and discharge from the same wires)
- This pack doesn't include the charger
Precautions:
- It is recommended to charge up the battery to 80% if you are going to store it for a period;
- Make sure the battery will be charged at least once every 3 months to ensure the best performance and cycle life;
- The battery should be stored in a dry environment, keep away from fire and heat sources;
- Avoid direct connection of positive and negative poles.
Warranty Terms：
- Our batteries provide a one-year warranty service.
- If you encounter any questions when using the product, please feel free to contact us, we will provide 24-hour customer service.
